MOJAVE MA-300

VINTAGE TUBE WARMTH. MAXIMUM FLEXIBILITY.

When TECHNICAL GRAMMY® Award‑winner David Royer took the trusted MA‑200 as his starting point to create the MA‑300, he added new features that give you the lush, tube-driven tone you love, with added adaptability.

Mix Magazine praises its “rich, warm tone and sonic flexibility,” while Everything Audio Network dubs it “a modern microphone classic…you will want multiples in your mic cabinet.” Recording legend Steve Genewick of Capitol Studios fame uses multiple MA‑300s. He told ProSoundWeb he wouldn’t hesitate to reach for them “anywhere I would traditionally use a Neumann U67.”

Mojave Audio’s MA‑300: The MA‑200, Supercharged.

WHERE TO BUY

Additional Features

  • Remotely controlled, continuously variable polar pattern selector

  • Switchable 15dB pad

  • Switchable Bass Roll-off

  • Hand-selected 3-micron double diaphragm capsule

  • Custom Mojave transformer

  • Military grade JAN 5840 vacuum tube

  • Internal switchable power supply voltage

  • Ultra clean signal path

Technical Information

Specifications

  • TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.

  • DIAPHRAGM: 1-inch diameter, gold sputtered

  • DIAPHRAGM THICKNESS : 3-microns

  • POLAR RESPONSE: Continuously variable from omnidirectional to figure-eight.

  • FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at “flat” setting of bass cut switch. Bass cut switch provides 6 dB per octave attenuation below 100 Hertz in “cut” setting

  • SENSITIVITY: -37dB re 1V/pa

  • MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.

  • DISTORTION:< 1% @ 117 dB SPL , < 3% @ 125 dB SPL with pad off, < 1% @ 132 dB SPL, < 3% @ 140 dB SPL with pad on

  • SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)

  • PAD: 15 dB

  • BASS CUT: 6 dB per octave below 100 hertz.

  • DIMENSIONS AND WEIGHT:

    • Carrying case with microphone, power supply, shock mount and cables: 13 lbs.

    • Microphone: 7 5/8″ X 2″, 1 lb.

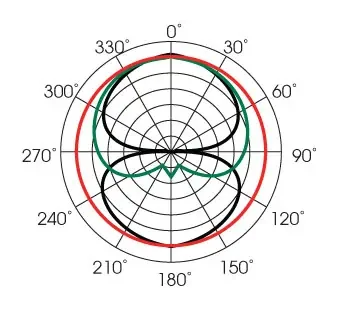

Polar Pattern + Frequency Response
