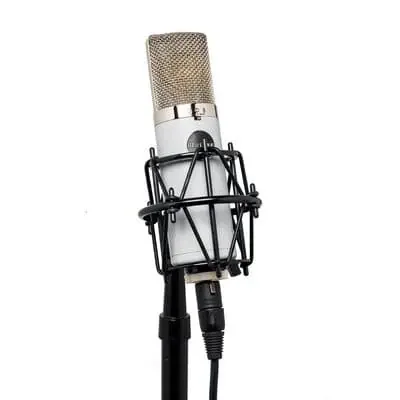

MOJAVE MA-301fet

EVERYTHING YOU LOVE ABOUT THE MA-201FET. UPGRADED FOR PROS WHO WANT OPTIONS.

The MA‑301fet takes everything artists and engineers love about the MA‑201fet with added flexibility for today’s unpredictable sessions. Designed by TECHNICAL GRAMMY® Award-winner David Royer, it delivers that unmistakable Mojave sound with added features for maximum flexibility.

Whether you’re tracking high SPL sources such as kick drums, or guitar + bass amps, the MA‑301fet adapts quickly and sounds finished straight out of the box.

Mojave Audio’s MA‑301fet: The modern U87 alternative that’s versatile, clear, and studio‑polished.

WHERE TO BUY

  • K67 Style Capsule

    Gold-sputtered capsule based on German U67 and U87 style microphones.

  • Multi-Pattern

    Switch between omni, cardioid, and figure-8 pattern.

  • FET Design

    Solid state microphones provide transparent, detailed sound.

Additional Features

  • Multi-pattern (Omni, Cardioid, Bidirectional)

  • Switchable 15dB pad

  • Switchable Bass Roll-off

  • Hand-selected 3-micron 1″ capsule

  • Custom Mojave transformer

  • Military-grade FET

  • Custom designed low-noise resistors

  • Ultra clean signal path

Technical Information

Specifications

  • TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.

  • DIAPHRAGM: 1-inch diameter, gold sputtered

  • DIAPHRAGM THICKNESS: 3 microns

  • POLAR PATTERN: 3 patterns; omni, cardioid and figure-8

  • FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at “flat” setting of bass cut
    switch.

  • BASS CUT SWITCH: Provides 6 dB per octave attenuation below
    100 Hertz in “cut” setting

  • SENSITIVITY: -40.5 dB, re. 1V/pa

  • MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.

  • DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
    < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on

  • SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)

  • PAD: 15 dB

  • BASS CUT: 6 dB per octave below 100 hertz.

  • IMPEDANCE: 550 ohms, transformer balanced (Jensen)

  • POWERING: 48VDC phantom power; current 1.2 mA

  • DIMENSIONS AND WEIGHT:
    Carrying case with microphone, shock mount: 10″ x 9″ x 4.5″, 4 lbs.
    Microphone: 7 5/8″ X 2″ (194mm x 51mm), 1 lb.

Polar Pattern + Frequency Response

Download Manual
