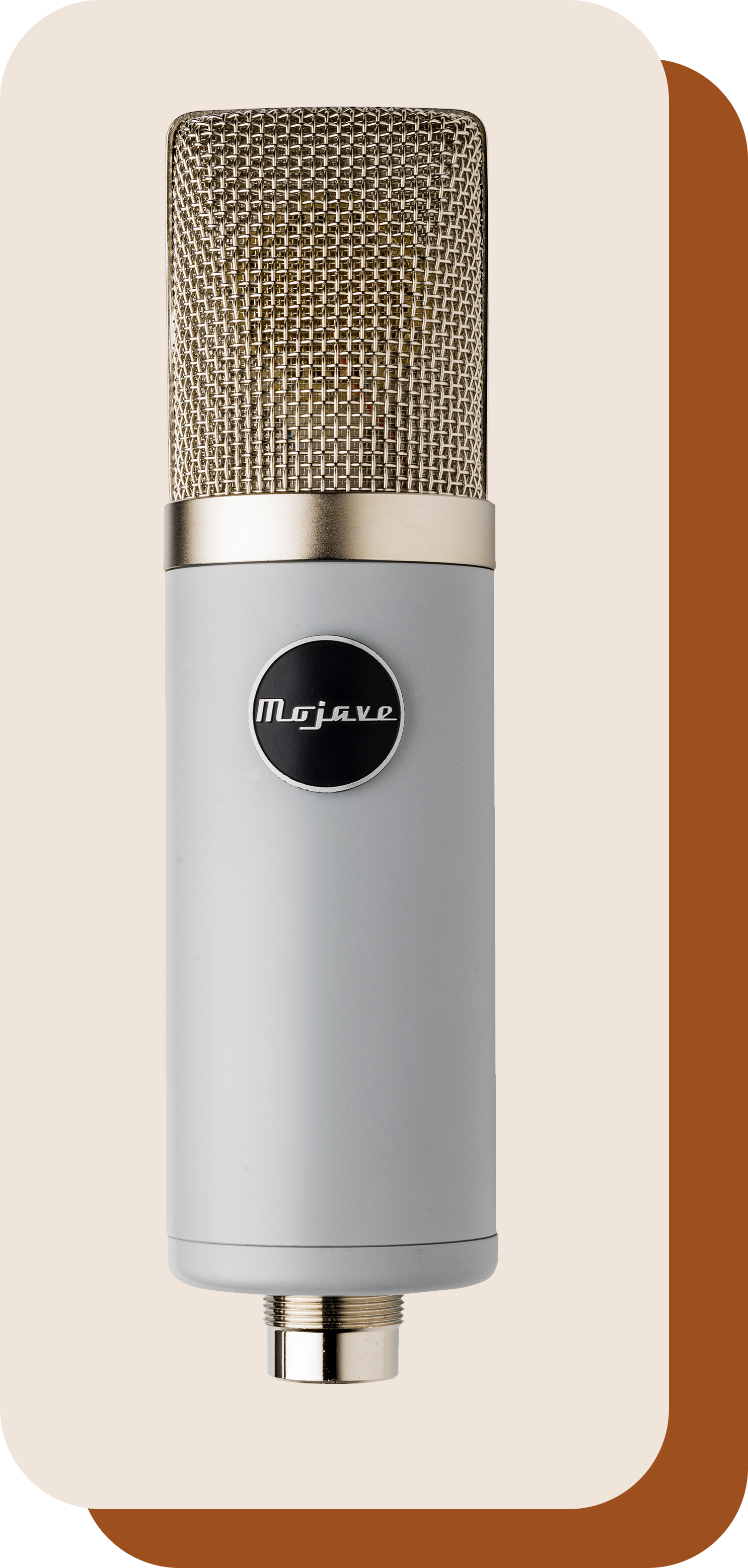

MOJAVE MA-201fet

CLASSIC TONE. ROCK SOLID DEPENDABILITY.

Designed by TECHNICAL GRAMMY® Award-winner David Royer, the vintage U87-inspired MA‑201fet delivers his signature full-bodied sound and exceptional clarity with none of the harshness found in many modern condensers.

A favorite among voiceover and broadcast professionals, Audible Studios™ praise its ability to capture a true representation of the voice without needing additional EQ processing.

On the live front, as superstar artists now demand studio-quality nuance in their live sound, A-list FOH mixers are turning to a brilliant not-so-secret weapon: matched pairs of the MA‑201fet on drum overheads.

Mojave Audio’s MA‑201fet: Built for clarity. Road-tested for performance.

WHERE TO BUY

Additional Features

  • Fixed cardioid pattern

  • Hand-selected 3-micron 1” capsule

  • Custom Mojave audio transformer

  • Military-grade FET

  • Custom designed low-noise resistors

  • Ultra clean signal path

Technical Information

Specifications

  • TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor – double diaphragm.

  • DIAPHRAGM: 1-inch diameter, gold sputtered

  • DIAPHRAGM THICKNESS: 3 microns

  • POLAR PATTERN: cardioid

  • FREQUENCY RESPONSE: 20 Hz to 20 KHZ

  • SENSITIVITY: -40.5 dB, re. 1V/pa

  • MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.

  • DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
    < 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on

  • SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)

  • IMPEDANCE: 550 ohms, transformer balanced

  • POWERING: 48VDC phantom power; current 1.2 mA

  • DIMENSIONS AND WEIGHT:
    Carrying case with microphone, shock mount: 10″ x 9″ x 4.5″, 4 lbs.
    Microphone: 7 5/8″ X 2″ (194mm x 51mm), 1 lb.

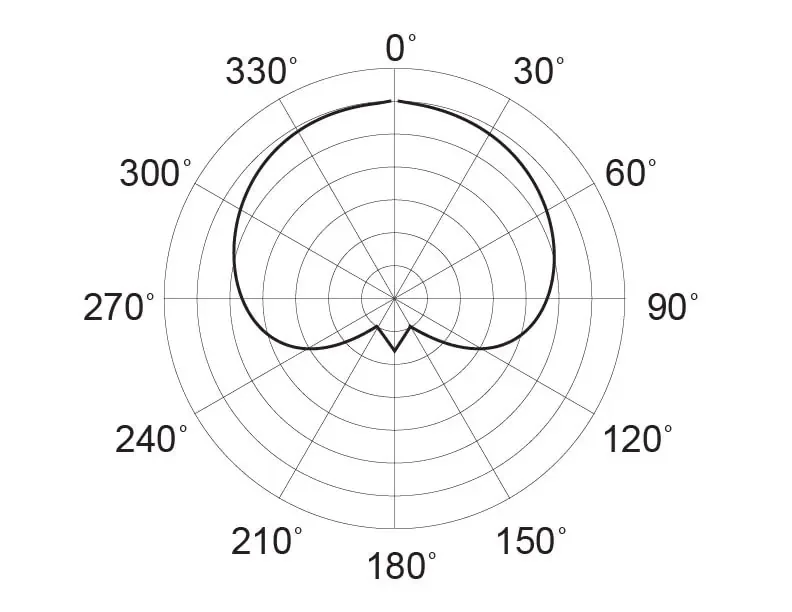

Polar Pattern + Frequency Response

Download Manual
