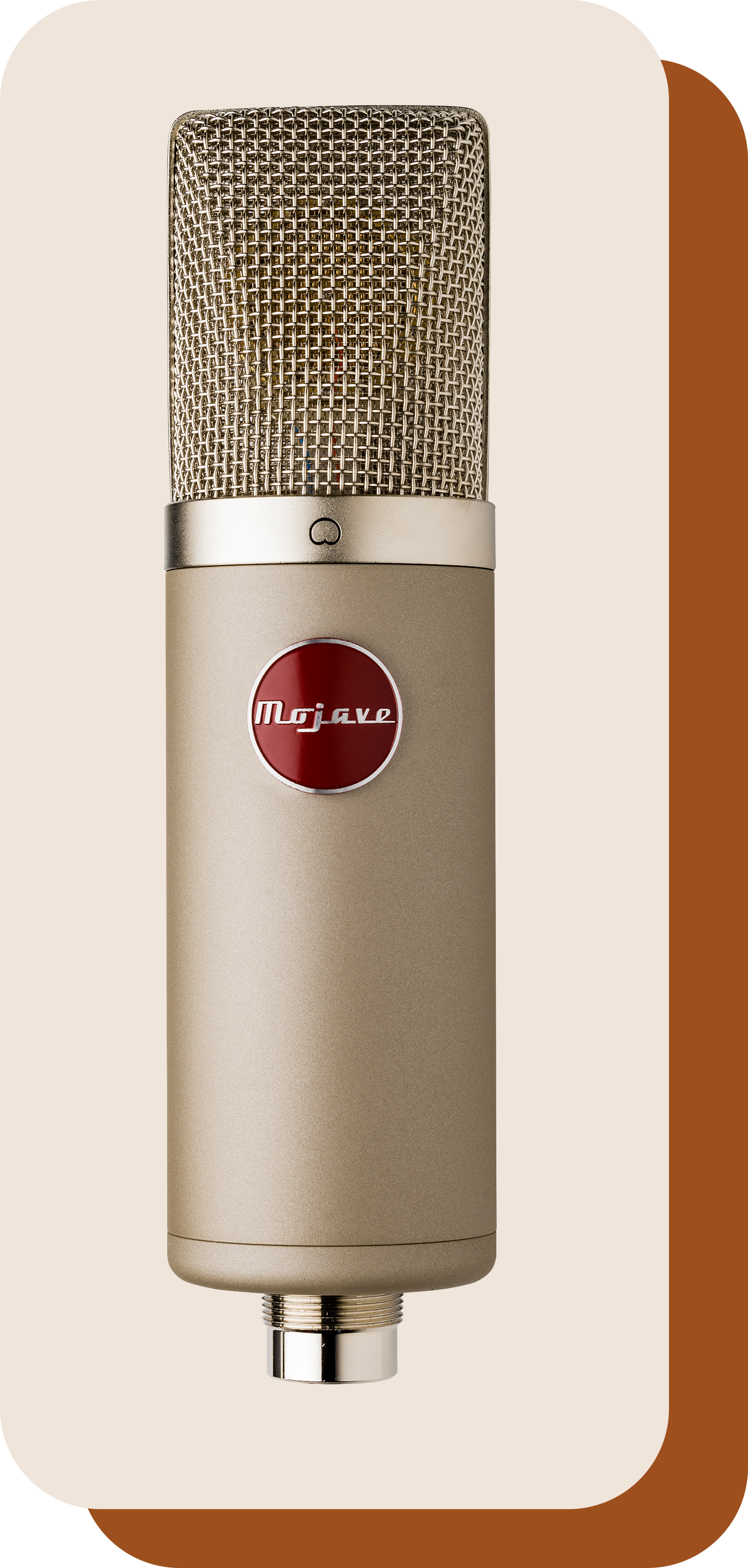

MOJAVE MA-200

THE GIANT SLAYER

Inspired by the iconic U67 but grounded in TECHNICAL GRAMMY®-winning designer David Royer’s unmistakable design voice, the MA-200 is Mojave’s go-to answer for artists who want warmth, depth, and vintage-style character, without the finicky upkeep of a decades-old tube mic.

The MA-200 features an open, musical sound that brings out the best in everything from vocals, acoustic instruments, and piano.

Mojave Audio’s MA-200: Your secret weapon that cuts through the hype.

WHERE TO BUY

  • K67 Style Capsule

    Gold-sputtered capsule based on German U67 and U87 style microphones.

  • Fixed Cardiod pattern

    A fixed cardioid polar pattern. Easy. Effective. Classic.

  • Vacuum Tube

    Warm, full bodied, with a smooth top end.

Additional Features

  • Hand-selected 3-micron, single-sided capsule

  • Custom Mojave transformer

  • Military grade JAN 5840 vacuum tube

  • Internal switchable power supply voltage

  • Ultra clean signal path

Technical Information

Specifications

  • TRANSDUCER TYPE: Externally excited capacitor type

  • DIAPHRAGM: 1-inch diameter, gold sputtered

  • DIAPHRAGM THICKNESS : 3-microns

  • POLAR RESPONSE: Cardioid

  • FREQUENCY RESPONSE: 20 Hz – 20 kHz, +/-3dB

  • SENSITIVITY: -37dB re 1V/pa

  • MAXIMUM SPL: 120dB

  • DISTORTION: head amp only, <1% @117dB SPL, <3% @ 125dB SPL

  • SELF NOISE: 14db nominal, not to exceed 16db (A Weighted)

  • IMPEDANCE: 200 ohms, balanced using an output transformer

  • VACUUM TUBE: 5840 – pentode tube wired for triode operation

  • POWER REQUIREMENTS: 100-120VAC; 220-240VAC, 50 or 60 Hz. Power consumption approx. 10 watts.

  • DIMENSIONS AND WEIGHT:
    Carrying case with microphone, power supply, shock mount
    and cables: 13 lbs.
    Microphone: 7 5/8″ X 2″, 1 lb.

Polar Pattern + Frequency Response

Download Manual
