MOJAVE MA-37
LEGACY TUBE SOUND. REBORN FOR TODAY’S SESSIONS.
When he set his sights on reinventing the Sony C‑37a, TECHNICAL GRAMMY® Award-winner David Royer didn’t just pay homage. He crafted a modern thoroughbred that performs without having to baby it like a museum piece. The NAMM TEC Award-winning MA‑37 delivers that headroom-rich tone beloved in the golden age of Hollywood recording combined with rock-solid reliability that today’s sessions demand.
“The sound of the MA‑37 is quite special and unique…Most modern large-diaphragm mics lean bright. This one leans the opposite way, with a dark and smooth timbre…Guitar amps sound amazing…even roaring stacks won’t overpower it.” – Tape Op
Mojave Audio’s MA‑37: The connoisseur’s mic built for pros who know what they want.
Additional Features
Handmade replica C-37A capsule
Lundahl Transformer
EF86 Vacuum Tube
Blend between cardioid and omnidirectional patterns
Compact and easy-to-position design
Hi-pass filter controls
Technical Information
Specifications
CAPSULE TYPE: Single diaphragm
POLAR PATTERN: Choice of cardioid or omni; via mechanical shutter
FREQUENCY RESPONSE: 30 to 18,000 Hz. ±3 dB (“M” setting)
SENSITIVITY: -46 dBv referred to 1 volt per pa.
MAXIMUM SPL: >135 SPL
DISTORTION: Not to exceed .5 percent at 134 dB
SELF NOISE: Better than 18 dB
BASS CUT: M flat
V1 -6dB at 50 Hz.
V2 -6dB at 100 Hz.
IMPEDANCE: 170 ohms, floating.
Recommended load 1500 ohms or higher

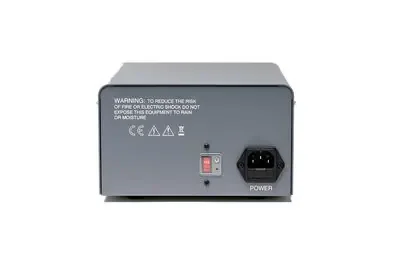

POWER REQUIREMENT: 115 or 230 VAC, 50 or 60 hertz; 5 watts.
6 volts DC at 200 mA.
140 volts DC at 1.5 mA. from dedicated power supply.
DIMENSIONS AND WEIGHT:
Microphone – 6”x2” 1lb.
Power Supply – 9.5”x7.25”x4.5” 5.5lb
Case – 18.5’x13.5”x7” 16lbs.
Polar Pattern + Frequency Response
